DFT+U: Hubbard Correction for Correlated Electrons

Standard DFT — whether LDA or GGA — describes electrons as moving in an effective single-particle potential constructed from the average charge density. This mean-field picture works well when electrons are itinerant, delocalised across the crystal in broad bands. It fails systematically for materials containing partially filled $d$ or $f$ shells, where electrons are spatially localised and strongly repel each other on the same atomic site. The canonical failures are well-known: GGA predicts NiO, CoO, and MnO to be metals; their experimental ground states are magnetic insulators with gaps of $3$–$4$ eV. Rare-earth oxides, actinide compounds, and many Heusler alloys with localised Mn or Co $d$ states share the same pathology.

The root cause is the self-interaction error (SIE) and the failure of the semi-local XC functional to reproduce the Coulomb blockade — the large energy cost $U$ of placing two electrons on the same atomic orbital simultaneously. The DFT+U method (Anisimov, Zaanen, Andersen, 1991) corrects this by appending a Hubbard-like penalty term to the DFT energy functional, adding the cost of double occupation explicitly for a chosen set of localised orbitals. It is the most widely used method for strongly correlated materials in a plane-wave or PAW framework.

The Hubbard Model: Physical Motivation

The Hubbard model (Hubbard, 1963) is the minimal lattice model capturing the competition between kinetic energy (electron hopping, bandwidth $W$) and on-site Coulomb repulsion: \begin{equation} \hat{H}_{\rm Hub} = -t\sum_{\langle i,j\rangle,\sigma}\hat{c}_{i\sigma}^\dagger\hat{c}_{j\sigma} + U\sum_i \hat{n}_{i\uparrow}\hat{n}_{i\downarrow}, \label{eq:Hubbard} \end{equation} where $\hat{c}_{i\sigma}^\dagger$ creates an electron of spin $\sigma$ on site $i$, $t$ is the nearest-neighbour hopping integral, $U$ is the on-site Coulomb repulsion, and $\hat{n}_{i\sigma} = \hat{c}_{i\sigma}^\dagger\hat{c}_{i\sigma}$ is the occupation operator.

The two limits are illuminating:

• $U/W \ll 1$ (itinerant limit): The bandwidth $W \sim zt$ (where $z$ is the coordination number) dominates. Electrons delocalise and form a metallic band. Standard DFT handles this regime well.

• $U/W \gg 1$ (Mott–Hubbard limit): The on-site repulsion dominates. For a half-filled band (one electron per site), double occupancy costs energy $U$, so electrons localise on individual sites and the system becomes a Mott insulator, even though band theory would predict a metal. DFT with semi-local XC functionals fails here because the mean-field treatment of electron–electron interaction cannot produce this correlation-driven localisation.

The Mott–Hubbard gap is approximately $U - W$: it opens when the repulsion energy exceeds the kinetic energy gain from delocalisation. For transition metal oxides, $U \sim 4$–$10$ eV and $W \sim 1$–$4$ eV, placing them firmly in the correlated regime.

Why Standard DFT Fails for Correlated Systems

The failure of LDA/GGA for Mott insulators can be traced to two related deficiencies:

1. Self-interaction error (SIE). As discussed in Chapter 4, approximate XC functionals do not fully cancel the spurious self-repulsion of an electron with itself. For a localised $d$ orbital occupied by a single electron, the SIE artificially delocalises the orbital, lowering its energy and pushing it into the valence band. The tendency of LDA/GGA to over-delocalise $d$ and $f$ electrons is a direct consequence.

2. Missing derivative discontinuity. The exact XC potential has a finite discontinuity at integer electron numbers $N$: \begin{equation} \Delta_{\rm xc} = V_{\rm xc}^+(N) - V_{\rm xc}^-(N) > 0, \label{eq:disc} \end{equation} where $V_{\rm xc}^\pm$ denote the XC potential just above and below integer $N$. This discontinuity, combined with the KS band gap, gives the true quasiparticle gap: $E_g^{\rm true} = E_g^{\rm KS} + \Delta_{\rm xc}$. Semi-local functionals give $\Delta_{\rm xc} = 0$ exactly, so they systematically underestimate gaps. For Mott insulators the KS gap is zero (they are predicted metallic), and $\Delta_{\rm xc}$ accounts for the entire physical gap.

DFT+U corrects both deficiencies for the targeted orbitals: the Hubbard $U$ term penalises fractional occupations and introduces a step-like potential that mimics the derivative discontinuity.

The DFT+U Energy Functional

Occupation Matrix

The central object in DFT+U is the occupation matrix $n_{mm’}^\sigma$ of the correlated subspace on each atom $I$: \begin{equation} n_{mm'}^{I\sigma} = \sum_{\mathbf{k},\nu} f_{\mathbf{k}\nu\sigma} \langle\phi_{\mathbf{k}\nu\sigma}|\hat{P}_{m'}^{I}\rangle \langle\hat{P}_m^{I}|\phi_{\mathbf{k}\nu\sigma}\rangle, \label{eq:occmat} \end{equation} where $f_{\mathbf{k}\nu\sigma}$ are KS orbital occupation numbers, $|\phi_{\mathbf{k}\nu\sigma}\rangle$ are the KS spinor states, and $\hat{P}_m^I = |\chi_m^I\rangle\langle\chi_m^I|$ is the projector onto the localised orbital $|\chi_m^I\rangle$ (e.g. the $d_{m}$ orbital on atom $I$, with $m = -l, \ldots, l$). In PAW, these projectors are the on-site partial waves; in LCAO codes, they are the basis functions themselves.

The occupation matrix is Hermitian ($n_{mm’}^{I\sigma} = (n_{m’m}^{I\sigma})^*$) and its trace gives the total occupation of spin channel $\sigma$ on site $I$: \begin{equation} N^{I\sigma} = \sum_m n_{mm}^{I\sigma} = \mathrm{Tr}[\mathbf{n}^{I\sigma}]. \end{equation}

The eigenvalues ${f_\alpha^{I\sigma}}$ of $\mathbf{n}^{I\sigma}$ lie in $[0,1]$ and are the natural orbital occupation numbers of the correlated subspace.

The Full DFT+U Functional

The total DFT+U energy is: \begin{equation} E_{\rm DFT+U} = E_{\rm DFT}[\rho] + E_U[{n_{mm’}^{I\sigma}}] - E_{\rm dc}[{N^{I\sigma}}], \label{eq:DFTU-total} \end{equation} where $E_{\rm DFT}$ is the standard LDA or GGA energy, $E_U$ is the Hubbard correction, and $E_{\rm dc}$ is the double-counting correction — a term that must be subtracted because the Coulomb interaction among the correlated electrons is already partially included in the DFT XC energy and must not be counted twice.

Two Formulations

Liechtenstein Formulation (Full Rotationally Invariant)

The Liechtenstein formulation (Liechtenstein, Anisimov, Zaanen, 1995) uses the full rotationally invariant Coulomb interaction characterised by two parameters: the average on-site Coulomb repulsion $U$ and the average exchange interaction $J$: \begin{equation} E_U^{\rm Lich} = \frac{1}{2}\sum_{I,\sigma}\sum_{{m}} \left[U_{m_1m_3}^{m_2m_4} - \delta_{\sigma\sigma’}J_{m_1m_3}^{m_2m_4}\right] n_{m_1m_2}^{I\sigma},n_{m_3m_4}^{I\sigma’}, \end{equation} where $U_{m_1m_3}^{m_2m_4}$ and $J_{m_1m_3}^{m_2m_4}$ are the screened Slater integrals parametrising the full Coulomb tensor. In practice these are reduced to a small number of radial integrals $F^0, F^2, F^4$ (for $d$ orbitals) related to $U$ and $J$ by: \begin{equation} U = F^0, \qquad J = \frac{F^2 + F^4}{14}. \end{equation}

The double-counting correction in the Liechtenstein scheme uses the around mean-field (AMF) form: \begin{equation} E_{\rm dc}^{\rm AMF} = \frac{U}{2}N(N-1) - \frac{J}{2}\sum_\sigma N^\sigma(N^\sigma - 1), \end{equation} where $N = \sum_\sigma N^\sigma$ is the total occupation of the correlated shell.

Dudarev Formulation (Simplified, $U_{\rm eff}$)

For most practical purposes, the simpler Dudarev formulation (Dudarev et al., 1998) is preferred. It collapses $U$ and $J$ into a single effective parameter $U_{\rm eff} = U - J$ and writes the correction as a penalty on fractional orbital occupations: \begin{equation} \boxed{E_U^{\rm Dur} = \frac{U_{\rm eff}}{2}\sum_{I,\sigma} \mathrm{Tr}!\left[\mathbf{n}^{I\sigma}!\left(\mathbf{1} - \mathbf{n}^{I\sigma}\right)\right].} \label{eq:Dudarev} \end{equation}

This elegant form has a transparent physical interpretation: the factor $n_{mm}^{I\sigma}(1 - n_{mm}^{I\sigma})$ vanishes when orbital $m$ is either fully occupied ($n = 1$) or fully empty ($n = 0$), and is maximised at $n = 1/2$ (half occupation). The correction thus adds a penalty for fractional occupations, driving the occupation matrix towards integer eigenvalues. This is precisely the correction for the SIE, which tends to stabilise unphysical non-integer occupations.

The corresponding correction to the KS potential is: \begin{equation} V_{mm’}^{I\sigma,\rm DFT+U} = \frac{U_{\rm eff}}{2}\left(\delta_{mm’} - 2n_{mm’}^{I\sigma}\right), \label{eq:Vpot} \end{equation} which shifts occupied orbitals (large $n_{mm}$) downward in energy by $-U_{\rm eff}/2$ and empty orbitals (small $n_{mm}$) upward by $+U_{\rm eff}/2$. The net effect is to open or widen the gap between occupied and empty states in the correlated subspace by approximately $U_{\rm eff}$, as intended.

The double-counting in Dudarev is implicit: the functional is constructed so that the $E_U - E_{\rm dc}$ combination reduces exactly to equation \eqref{eq:Dudarev}, with the double-counting absorbed algebraically. No separate choice of double-counting scheme is needed.

Comparison of Formulations

For most $d$-electron transition metal compounds, the Dudarev formulation with a single $U_{\rm eff}$ is sufficient and is the default in VASP (LDAUTYPE = 2). The Liechtenstein form is preferred when orbital polarisation within the correlated shell matters — rare-earth $f$ systems, systems near the Mott transition, or when $J$ significantly affects the orbital ordering.

The Double-Counting Problem

The double-counting term $E_{\rm dc}$ in equation \eqref{eq:DFTU-total} has no unique exact form because the DFT XC energy does not separate cleanly into contributions from the correlated subspace and the rest. Two schemes are in common use:

Fully localised limit (FLL), also called the atomic limit: \begin{equation} E_{\rm dc}^{\rm FLL} = \frac{U}{2}N(N-1) - \frac{J}{2}\left[\frac{N}{2}!\left(\frac{N}{2}-1\right) + \frac{N}{2}!\left(\frac{N}{2}-1\right)\right], \label{eq:FLL} \end{equation} valid when the correlated orbital is nearly fully occupied or nearly empty (close to the atomic limit). This is appropriate for $f$-electron systems and late transition metal oxides.

Around mean-field (AMF): \begin{equation} E_{\rm dc}^{\rm AMF} = \frac{U}{2}\bar{n}(N-1) - \frac{J}{2}\sum_\sigma\bar{n}^\sigma(N^\sigma - 1), \end{equation} where $\bar{n} = N/(2l+1)$ is the average occupation per orbital. This is appropriate when the occupations are close to the average (near the itinerant limit).

The FLL correction gives a larger energy shift for occupied orbitals and is the standard choice in most codes. However, the double-counting error is a fundamental limitation of DFT+U: since it cannot be derived from first principles, it introduces an uncontrolled approximation that depends on how much of $U$ is already captured in the DFT functional. This is one motivation for methods like DFT+DMFT, which treat the correlated subspace exactly.

Determining $U$

The Hubbard $U$ parameter is not a unique material property — it depends on the DFT functional, the choice of localised basis, and the degree of screening in the material. Three approaches are used in practice.

Empirical Fitting

The simplest approach is to choose $U_{\rm eff}$ to reproduce an experimentally known quantity — typically the band gap, lattice constant, or magnetic moment. For NiO, $U_{\rm eff} \approx 5$–$6$ eV reproduces the experimental gap of $\sim 4$ eV; for FeO, $U_{\rm eff} \approx 4$ eV. Empirical $U$ values are system-specific and should not be transferred between materials without validation.

A compilation of commonly used values:

Linear Response (Cococcioni–de Gironcoli)

A first-principles approach computes $U$ from the linear response of the occupation matrix to a localised perturbation potential $\alpha^I$ applied to site $I$ (Cococcioni and de Gironcoli, 2005): \begin{equation} U^I = \left(\chi_0^{-1} - \chi^{-1}\right)^{II}, \label{eq:LR-U} \end{equation} where $\chi_0^{II} = \partial N^I/\partial\alpha^I|_{\rm bare}$ is the bare (non-self-consistent) response and $\chi^{II} = \partial N^I/\partial\alpha^I|_{\rm SCF}$ is the fully self-consistent response. The difference captures the screening of the bare Coulomb interaction by all other electrons. The parameter $U$ computed this way is self-consistent with the chosen DFT functional and projector, requiring no experimental input.

The procedure is: (1) apply a small perturbation $\pm\alpha$ to the Hubbard projector of site $I$; (2) compute the SCF and non-SCF changes in $N^I$; (3) extract $U$ from equation \eqref{eq:LR-U}. This is available as a post-processing step in Quantum ESPRESSO (hp.x) and can be scripted in VASP.

Limitations: Linear response $U$ values tend to be smaller than empirically fitted values because they include screening by itinerant valence electrons. The result also depends on the choice of projectors and may differ between PAW and LCAO implementations.

Constrained Random Phase Approximation (cRPA)

The most rigorous approach is the constrained RPA (Aryasetiawan et al., 2004), which computes the partially screened Coulomb interaction $W(\omega)$ by excluding the screening from the correlated subspace itself (to avoid double counting): \begin{equation} U(\omega) = \langle\chi_m\chi_{m’}|W_r(\omega)|\chi_m\chi_{m’}\rangle, \end{equation} where $W_r$ is the RPA-screened interaction with the polarisation of the correlated $d/f$ subspace removed. cRPA gives frequency-dependent $U(\omega)$; the static limit $U(0)$ is used in DFT+U, while the full frequency dependence feeds into DFT+DMFT. cRPA requires a GW-like calculation and is available in VASP (ALGO = CRPA) and the WIEN2k+DMFT interface.

Effect of $U$ on the Electronic Structure

The potential correction \eqref{eq:Vpot} produces several characteristic changes to the electronic structure that can be verified against experiment:

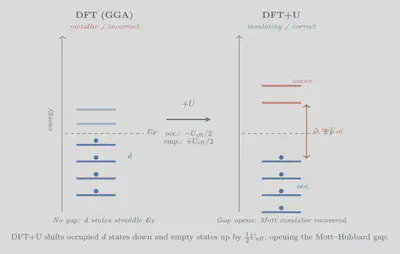

Band gap opening. Occupied $d/f$ states are shifted down by $\sim U_{\rm eff}/2$ and empty states up by $\sim U_{\rm eff}/2$, opening a gap of approximately $U_{\rm eff}$ in the correlated subspace. For a Mott insulator like NiO, DFT gives a metallic state while DFT+U with $U_{\rm eff} \approx 5$ eV correctly gives an insulating gap $\sim 3$–$4$ eV.

Magnetic moments. By localising the $d/f$ electrons, DFT+U increases the local spin moment towards the ionic limit. For Fe$^{3+}$ in an oxide (half-filled $3d$, $S = 5/2$), GGA gives moments of $\sim 3.5,\mu_B$; DFT+U with appropriate $U$ gives $\sim 4.2,\mu_B$, closer to the ionic value of $5.0,\mu_B$.

Exchange coupling $J$. The exchange coupling constants extracted from DFT+U are generally more reliable than from GGA for Mott insulators, because the localised occupations improve the description of the superexchange mechanism. For half-metallic Heusler alloys, DFT+U may be needed when one or more magnetic sublattice contains strongly correlated $d$ states.

Lattice parameters and forces. The occupation-dependent potential modifies the forces on ions, generally increasing bond lengths for correlated oxides by $\sim 0.5$–$2%$ towards experiment.

Multiple Correlated Sites and Inter-Site $U$

When a material contains more than one type of correlated atom (e.g. both Fe and Co in a double perovskite, or both $3d$ transition metal and $4f$ rare earth), separate $U$ values must be applied to each:

LDAUU = 0 0 5.0 6.5    # e.g. O p, La f, Fe d, Co d
LDAUJ = 0 0 1.0 0.7
LDAUL = -1 -1 2 2      # l quantum number: -1=off, 2=d

Inter-site Coulomb repulsion $V$ between neighbouring correlated sites (the extended Hubbard model: $\hat{H} = \ldots + V\sum_{\langle i,j\rangle}\hat{n}_i\hat{n}_j$) is not included in standard DFT+U but becomes important for charge-ordered states and certain multiferroics. The DFT+U+V method (Campo and Cococcioni, 2010) extends the Dudarev functional to include inter-site occupations and is available in Quantum ESPRESSO.

Practical Checklist for DFT+U Calculations

1. Choose the correlated subspace: Apply $U$ to the $d$ or $f$ orbitals of the magnetic or strongly correlated atoms. Do not apply $U$ to $s$ or $p$ orbitals unless specifically justified.

2. Determine $U_{\rm eff}$: Use the linear response method for a first-principles estimate, or empirically fit to the experimental band gap or magnetic moment. Report the value used and validate against at least one observable.

3. Use Dudarev (LDAUTYPE = 2) for $d$ electrons by default. Switch to Liechtenstein (LDAUTYPE = 1) with explicit $J$ only for $f$-electron systems or when orbital polarisation is physically important.

4. Check for metastable solutions: The occupation matrix can converge to local energy minima corresponding to different orbital orderings. Always try multiple initial occupation matrices (e.g. initialise with identity, with the fully spin-polarised matrix, and with a broken-symmetry matrix) and compare final energies.

5. Initialise the occupation matrix explicitly in VASP using LDAUPRINT = 2 to print the matrices and MAGMOM tags to set the initial spin. In Quantum ESPRESSO, use starting_ns_eigenvalue to initialise specific orbital occupations.

6. Converge $U$-dependent properties: Band gaps, magnetic moments, and lattice constants all depend on $U_{\rm eff}$. Perform a sensitivity analysis over a range $U_{\rm eff} \pm 1$–$2$ eV to assess the robustness of your conclusions.

7. Validate against hybrid functionals: For a subset of configurations, compare DFT+U results against HSE06 or PBE0. Reasonable agreement lends confidence to the $U$ choice; large discrepancies signal that the double-counting or projector choice may be inadequate.

Limitations of DFT+U

DFT+U is a practical and computationally cheap correction, but it has fundamental limitations that must be kept in mind:

Ambiguity in $U$ and double counting. Neither $U$ nor $E_{\rm dc}$ is uniquely defined. Different codes, projectors, and double-counting schemes give different results for the same nominal $U$, making comparison between studies non-trivial.

Static mean-field treatment. DFT+U replaces the dynamic on-site correlations of the Hubbard model with a static mean-field correction. It cannot describe the Kondo effect, orbital fluctuations, or the incoherent spectral weight (Hubbard bands) that are hallmarks of strongly correlated metals near the Mott transition. These require DFT+DMFT.

Orbital dependence and symmetry breaking. The occupation matrix $n_{mm’}^{I\sigma}$ is basis-dependent and can break the rotational symmetry of the system if not handled carefully. Unphysical orbital orderings can appear as metastable SCF solutions.

Not a systematic improvement. Unlike the Jacob’s Ladder hierarchy of Chapter 4, there is no guarantee that DFT+U improves all properties simultaneously. It often improves the gap while worsening structural parameters or vice versa, depending on the choice of $U$.

Outlook

DFT+U addresses the most severe failure of semi-local DFT for correlated materials at minimal computational cost — a single SCF calculation with modified on-site potentials. It is the standard first step for any system containing transition metal or rare-earth ions. For systems where the full dynamical correlations matter (Kondo systems, strongly correlated metals, spectral functions), the natural extension is DFT+DMFT (Dynamical Mean-Field Theory), which treats the correlated subspace exactly within an effective impurity model while embedding it in the DFT electronic structure of the surrounding crystal. This is beyond the scope of the present course, but the DFT+U occupation matrix and Hubbard projectors developed here form the direct input to any DFT+DMFT implementation.
